ECS-320-CDX-2094是一款非常適合LoRa網絡協議的貼片無源晶振
The ECS team is fully aware of the disruption and hardship that this matter is causing across the supply chain. It is effecting each and every one of our customers and we’re sharing in the hardship with you. The shortages are affecting a wide range of applications from Health Care to Automotive. We understand that this is causing manufacturing delays…increased costs of production and slowing launces of your new products. We feel your pain in this entire matter but our goal still remains the same and that is to do whatever it takes to service our loyal customer base.
ECS團隊充分意識到這件事對整個供應鏈造成的破壞和困難。它影響著我們的每一位客戶，我們與您分擔艱辛。短缺正在影響從醫療保健到汽車的廣泛應用。我們知道這會導致制造延遲……增加生產成本并減慢新產品石英貼片晶振的投放速度。我們?cè)谶@整個問題上感受到您的痛苦，但我們的目標仍然保持不變，那就是盡一切努力為我們忠實的客戶群提供服務。ECS-320-CDX-2094是一款非常適合LoRa網絡協議的貼片無源晶振
| ECS-250-8-36-RWN-TR | CRYSTAL 25MHZ 8PF SMD | ECX-2236 | MHz Crystal | 25MHz | ±15ppm | - | Surface Mount | 4-SMD, No Lead | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| ECS-300-8-36-RWN-TR | CRYSTAL 30MHZ 8PF SMD | ECX-2236 | MHz Crystal | 30MHz | ±15ppm | - | Surface Mount | 4-SMD, No Lead | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| ECS-184.3-8-36-RWN-TR | CRYSTAL 18.432MHZ 8PF SMD | ECX-2236 | MHz Crystal | 18.432MHz | ±15ppm | - | Surface Mount | 4-SMD, No Lead | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| ECS-192.0-8-36-RWN-TR | CRYSTAL 19.2MHZ 8PF SMD | ECX-2236 | MHz Crystal | 19.2MHz | ±15ppm | - | Surface Mount | 4-SMD, No Lead | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| ECS-260-8-36-RWN-TR | CRYSTAL 26MHZ 8PF SMD | ECX-2236 | MHz Crystal | 26MHz | ±15ppm | - | Surface Mount | 4-SMD, No Lead | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| ECS-480-8-36-RWN-TR | CRYSTAL 48MHZ 8PF SMD | ECX-2236 | MHz Crystal | 48MHz | ±15ppm | - | Surface Mount | 4-SMD, No Lead | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| ECS-200-8-36-RWN-TR | CRYSTAL 20MHZ 8PF SMD | ECX-2236 | MHz Crystal | 20MHz | ±15ppm | - | Surface Mount | 4-SMD, No Lead | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| ECS-245.7-8-36-RWN-TR | CRYSTAL 24.576MHZ 8PF SMD | ECX-2236 | MHz Crystal | 24.576MHz | ±15ppm | - | Surface Mount | 4-SMD, No Lead | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| ECS-270-8-36-RWN-TR | CRYSTAL 27MHZ 8PF SMD | ECX-2236 | MHz Crystal | 27MHz | ±15ppm | - | Surface Mount | 4-SMD, No Lead | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| ECS-320-8-36-RWN-TR | CRYSTAL 32MHZ 8PF SMD | ECX-2236 | MHz Crystal | 32MHz | ±15ppm | - | Surface Mount | 4-SMD, No Lead | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| ECS-.327-6-39-TR | CRYSTAL 32.768KHZ 6PF SMD | ECX-39 | kHz Crystal (Tuning Fork) | 32.768kHz | - | - | Surface Mount | 2-SMD, No Lead | 0.193" L x 0.071" W (4.90mm x 1.80mm) |
我們的愿望和意圖是定期通知您正在取得的進展或與您分享可能影響問題的任何令人信服的事項。我們?cè)谶@里盡最大努力為您提供支持，幫助您度過這個最困難的時期，并幫助您克服當前SMD晶振短缺的障礙。ECS-320-CDX-2094是一款非常適合LoRa網絡協議的貼片無源晶振

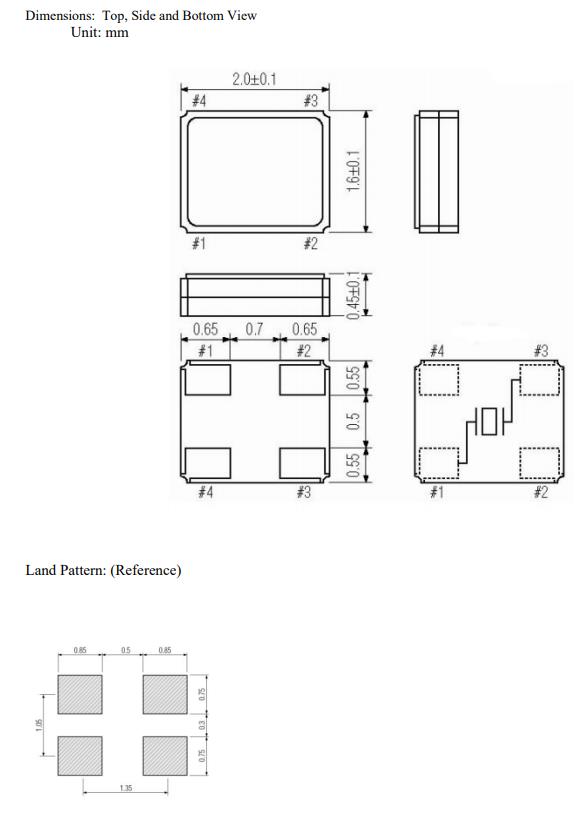

The ECS‐320-CDX-2094 has a tight tolerance and low G-sensitivity in a 2.0 x 1.6 x 0.45 mm package. With a tolerance of ±10ppm at 25°C and a stability of ±20ppm over -40°C ~ +85°C, it offers a G-sensitivity of 2.0ppb/G.
ECS-320-CDX-2094 在2.0 x 1.6 x 0.45 mm封裝中具有嚴格的公差和低G靈敏度。它在25°C時的容差為±10ppm，在-40 °C ~ +85 °C范圍內的穩定性為 ±20ppm，其G靈敏度為 2.0ppb/G。同時這也是一款高質量,高可靠性能的無源晶振,ECS-320-CDX-2094 是最適合 LoRa 網絡協議的32 MHz貼片無源晶振.廣泛用于無線太陽，智能家居，智能實用程序，智慧農業等領域。
