石英晶體振蕩器
- 編號：97702143
- 頻率：32.768KHZ
- 尺寸：2.0*1.2mm
大真空2012mm晶體\DST210AC無源諧振器\1TJ125DR1AC054
大真空2012mm晶體\DST210AC無源諧振器\1TJ125DR1AC054，尺寸2012mm,頻率32.768KHZ，日本大真空株式會社，進口無源晶振，KDS音叉晶振，兩腳貼片晶振，SMD晶振，無源晶振，無源SMD晶振，進口32.768K音叉晶體，無源諧振器...
大真空2012mm晶體\DST210AC無源諧振器\1TJ125DR1AC054，尺寸2012mm,頻率32.768KHZ，日本大真空株式會社，進口無源晶振，KDS音叉晶振，兩腳貼片晶振，SMD晶振，無源晶振，無源SMD晶振，進口32.768K音叉晶體，無源諧振器，水晶振動子，32.768KHZ音叉晶體，32.768KHZ貼片晶振，環保晶振，汽車級晶振，時鐘應用晶振，移動通信設備專用晶振，民用設備晶振，娛樂設備晶振，藍牙耳機晶振，高精度晶振，高可靠性晶振，低損耗晶振，低功耗晶振，具有高精度高可靠性能的特點.
SMD晶振產品適用于范圍廣泛，適合用于移動通信設備、民用設備，時鐘應用，娛樂設備，藍牙耳機等領域。大真空2012mm晶體\DST210AC無源諧振器\1TJ125DR1AC054.

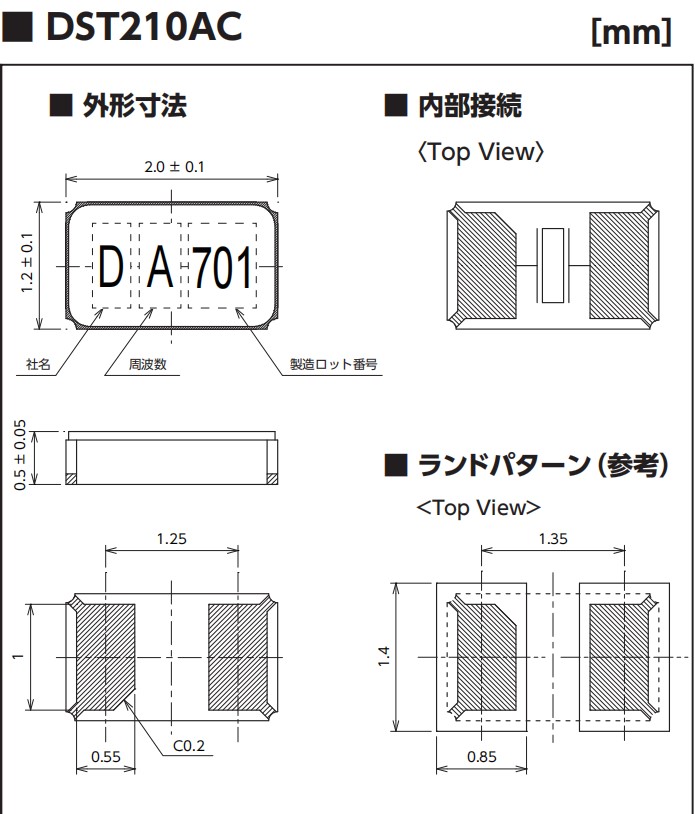

大真空2012mm晶體\DST210AC無源諧振器\1TJ125DR1AC054 參數表
| 型名 | DST210AC |
|---|---|
| 周波數範囲 | 32.768kHz |
| 負荷容量 | 6pF, 7pF, 9pF, 12.5pF |
| 勵振レベル | 0.1μW （0.5μW max.） |
| 周波數許容偏差 | ±20×10-6(at 25℃） |
| 直列抵抗 | 50/80kΩ max. |
| 頂點溫度 | +25℃±5℃ |
| 二次溫度係數 | -0.04×10-6/℃2 max. |
| 動作溫度範囲 | -40~+85℃ |
| 保存溫度範囲 | -40~+85℃ |
| 並列容量 | 1.6/1.3pF typ. |
| 梱包単位（1） | 3,000pcs/reel (φ180) |
大真空2012mm晶體\DST210AC無源諧振器\1TJ125DR1AC054

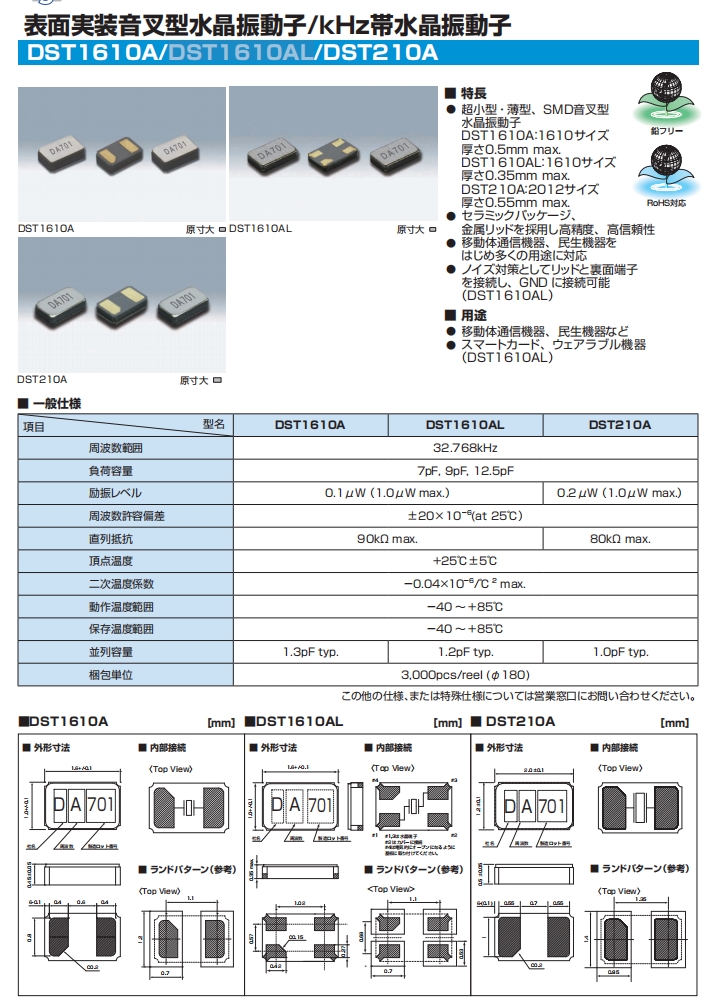

貼片無源晶振產品特性：
超小型薄型、SMD音叉型石英振子2012尺寸、厚度0.5mm
.jpg)
| 品牌 | 原廠代碼 | 型號 | 尺寸 | 頻率 | 負載/電壓 | 精度 | 溫度 |
| KDS晶振 | 7BG03276A3C | DST1610A | 1610 | 32.768K | 12.5PF | 20ppm | |
| KDS晶振 | 7BG03276A1X | DST1610A | 1610 | 32.768K | 7PF | 20ppm | |
| KDS晶振 | 1TJH090DP1A0006 | DST1610A | 1610 | 32.768K | 9PF | 20ppm | |
| KDS晶振 | 1TJ125DR1AC054 | DST210AC | 2012 | 32.768K | 12.5PF | 20ppm | |
| KDS晶振 | 1TJF080DP1AA003 | DST310S | 3215 | 32.768k | 8PF | 20ppm | |
| KDS晶振 | 1TJF080DP1AI00P | DST310S | 3215 | 32.768k | 8PF | 20ppm | |
| KDS晶振 | 1TJF125DP1AI009 | DST310S | 3215 | 32.768k | 12.5PF | 20ppm | |
| KDS晶振 | 1TJF090DP1AA00L | DST310S | 3215 | 32.768k | 9PF | 20ppm | |
| KDS晶振 | 1TJF0SPDP1AA00G | DST310S | 3215 | 32.768k | 8PF | 20ppm | |
| KDS晶振 | 1TJE090FR1AH00C | DST410S | 3215 | 32.768k | 9PF | 20ppm | |
| KDS晶振 | 1TD125DHNS036 | DT-26 | 206 | 32.768k | 12.5PF | 20PPM | |
| KDS晶振 | 1TD060DHNS014 | DT-26 | 206 | 32.768k | 6.0PF | 20PPM | |
| KDS晶振 | 1TD075BHNS001 | DT-26 | 206 | 32.768k | 7.5PF | 10PPM | |
| KDS晶振 | 1TD125BFNS001 | DT-26 | 206 | 32.768k | 12.5PF | 10PPM | |
| KDS晶振 | 1TD1001HNS001 | DT-26 | 206 | 32.768k | 10.0PF | -6/+2PPM | |
| KDS晶振 | 1TD1250HNS005 | DT-26 | 206 | 32.768k | 12.5PF | 30/40P | |
| KDS晶振 | 1TD060DHNS006 | DT-26 | 206 | 32.768KHZ | 6PF | 20PPM | |
| KDS晶振 | 1TD0701GNS002 | DT-26 | 206 | 32.768KHZ | 7PF | 20PPM | |
| KDS晶振 | 1TD080DHNS004 | DT-26 | 206 | 32.768KHZ | 8PF | 20PPM | |
| KDS晶振 | CFS20632768DZFT | CFS-206 | 206 | 32.768K | 12.5PF | 20ppm | |
| KDS晶振 | 1TC125DFNS030 | DT-38 | 308 | 32.768k | 12.5PF | 20PPM | |
| KDS晶振 | 1TC125DFNS004 | DT-38 | 308 | 32.768k | 12.5PF | 20PPM | |
| KDS晶振 | 1TC125NFNS002 | DT-38 | 308 | 32.768k | 12.5PF | 1000PPM | |
| KDS晶振 | 1TC125AFSS003 | DT-38 | 308 | 32.768k | 12.5PF | 5PPM | |
| KDS晶振 | 1TC250E65 | DT-38 | 308 | 32.768k | 12.5PF | +12/+28PPM | |
| KDS晶振 | 1TC125JHNS001 | DT-38 | 308 | 32.768KHZ | 12.5PF | 50PPM | |
| KDS晶振 | 1TC125AFWS027 | DT-38 | 308 | 32.768KHZ | 12.5PF | 5PPM | |
| KDS晶振 | 1TC070DFNS012 | DT-38 | 308 | 32.768KHZ | 7PF | 20PPM | |
| KDS晶振 | DT-38 | 308 | 32.768KHZ | 12.5PF | 200P | ||
| KDS晶振 | 1TJS060DJ4A739Q | DMX-26S | 8038 | 32.768K | 6PF | 20PPM | |
| KDS晶振 | 1ZZCAA24000BE0B | DSX211G | 2016 | 24.000M | 10PF | 20PPM | |
| KDS晶振 | 1ZZCAA27120BB0D | DSX211G | 2016 | 27.12M | 10PF | 20PPM | |
| KDS晶振 | 1ZZNAE48000ZZ0R | DSX211SH | 2016 | 48.000M | 7PF | 20PPM | |
| KDS晶振 | 1C707600CC1B | DSX530GA | 5032 | 7.600M | 10PF | 30PPM | |
| KDS晶振 | 1ZZNAE26000AB0J | DSX211SH | 2016 | 26.000M | 7PF | 10PPM | |
| KDS晶振 | 1ZCP37400AA0H | DSX211AL | 2016 | 37.400M | |||
| KDS晶振 | 1ZZNAE38400AB0A | DSX211SH | 2016 | 38.400M | 10PF | 10PPM | |
| KDS晶振 | 1ZZHAM24000BB0B | DSX1612S | 1612 | 24.000M | |||
| KDS晶振 | 1ZZHAM26000AB0A | DSX1612S | 1612 | 26.000M | |||
| KDS晶振 | 1ZZCAA27120CD0A | DSX211G | 2016 | 27.12M | |||
| KDS晶振 | 1ZZNAE38400AA0C | DSX211SH | 2016 | 38.400M | |||
| KDS晶振 | 7AE01200A00 | DSX221G | 2520 | 12.000M | 8PF | ||
| KDS晶振 | 1ZCB26000AB0R | DSX221G | 2520 | 26.000M | |||
| KDS晶振 | 1ZCT24000BD0A | DSX320GE | 3225 | 24.000M | |||
| KDS晶振 | 1XTV36864HBA | DSA321SCM | 3225 | 36.864M | |||
| KDS晶振 | 1CG12288EE1C | DSX630G | 6035 | 12.288M | |||
| KDS晶振 | 1ZNA16000AB0P | DSX221G | 2520 | 16.000M | 9PF | 10ppm | |
| KDS晶振 | 1ZNA32000BB0B | DSX221G | 2520 | 32.000M | 12PF | 15ppm | |
| KDS晶振 | ZC13727 | DSX221SH | 2520 | 24.000M | 10PF | 30ppm | |
| KDS晶振 | 1ZN326000AB0A | DSX221SH | 2520 | 26.000M | 7PF | 10PPM | |
| KDS晶振 | 1C208000BC0R | DSX321G | 3225 | 8.000M | 12PF | 20PPM | |
| KDS晶振 | 7AD00800A1C | DSX321G | 3225 | 8.000M | 12PF | 20PPM | |
| KDS晶振 | 1C208000CE0H | DSX321G | 3225 | 8.000M | 10PF | 20PPM | |
| KDS晶振 | 1C208000EE0BL | DSX321G | 3225 | 8.000M | 12PF | 20PPM | 40~125度 |
| KDS晶振 | 1ZCM080000EE0A汽車 | DSX320G | 3225 | 8.000M | 8PF | 20PPM | 40~85度 |
| KDS晶振 | 1C208000EZ0G汽車 | DSX321G | 3225 | 8.000M | 8PF | 30PPM | 40~85度 |
| KDS晶振 | 1N210000EE0X | DSX321G | 3225 | 10.000M | 10PF | ||
| KDS晶振 | 7AD01200A1R | DSX321G | 3225 | 12.000M | 8PF | 20ppm | |
| KDS晶振 | 1N212000BC0AK | DSX321G | 3225 | 12.000M | 10PF | 20ppm | |
| KDS晶振 | 1C213080CC0A | DSX321G | 3225 | 13.080M | 8PF | ||
| KDS晶振 | 1C232000ABOV | DSX321G | 3225 | 32.000M | 6PF | 10PPM | |
| KDS晶振 | 1N254000BB0M | DSX321G | 3225 | 54.000M | 19PF | 15PPM | |
| KDS晶振 | 1ZCM12000BC0A | DSX320G | 3225 | 12.000M | 8PF | ||
| KDS晶振 | 1C216000EE0AW | DSX321G | 3225 | 16.000M | 8PF | 50PPM | |
| KDS晶振 | 1N216000EE0BE | DSX321G | 3225 | 16.000M | 8PF | 50PPM | |
| KDS晶振 | 1C216000BF0B | DSX321G | 3225 | 16.000M | |||
| KDS晶振 | 1C319200AA0A | DSX321G | 3225 | 19.200M | 8PF | 10PPM | |
| KDS晶振 | 1C220000AA0K | DSX321G | 3225 | 20.000M | |||
| KDS晶振 | 1C224000BE0K | DSX321G | 3225 | 24.000M |
